SM20-21L-T Linear Stepper Motor 2 Phase 12V Rated Voltage and 18° step for Precision Control

Brand Name : VIC-TECH

Model Number : SM20-21L-T

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 unit

Price : $7-$15/unit

Payment Terms : Western Union,MoneyGram，Credit Card

Supply Ability : 1000000 units/year

Delivery Time : 15-30 work days

Packaging Details : Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.

Type : Permanent Magnet

Step Angle : 18 °

Phase : 2 phases

Current / Phase : 800mA/PHASE

Rated Voltage : 12 V

Coil Resistance : 15.6±10%Ω

Thrust : over 1.2KG

Contact Now

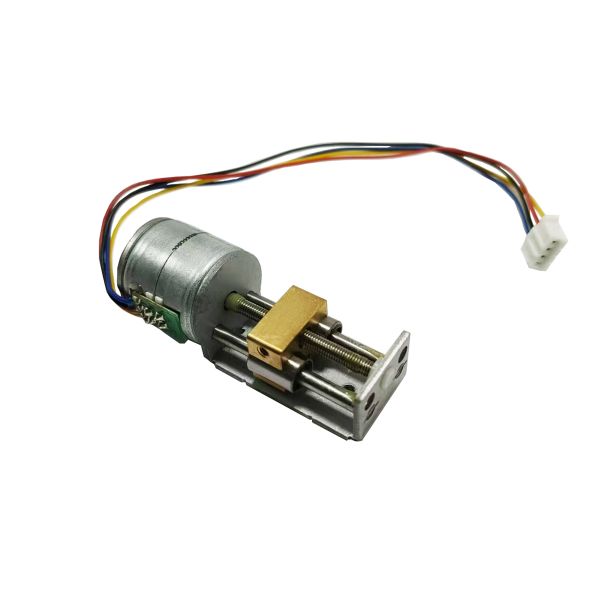

SM20-21L-T Metal Slide Linear Stepper Motor, 20mm Diameter, 2-Phase Stepper Motor, 1.2kg Thrust

This 20mm linear motor features a copper slide and two linear bearings for enhanced stability. A plastic slide option is also available.

Key Features
  • 18° step angle
  • M3*0.5P threaded lead screw shaft (0.5mm pitch per rotation)
  • 21mm travel range
  • 1.2kg thrust capacity (over 12N)
  • Precision linear control capability
Mechanical Dimensions
SM20-21L-T Linear Stepper Motor 2 Phase 12V Rated Voltage and 18° step for Precision Control
Technical Parameters
Parameter Value
Model No. SM20-21L-T
Current Per Phase 770 mA/Phase
Coil Resistance 15.6±7% ohm/PHASE
Rated Voltage 12 V DC
No. of Phases 2 Phases
Step Angle 18°/Step
Excitation Method 2 Phases Excitation
Drive Mode Bipolar Drive
Pull-out Thrust More Than 1200g AT 700PPS
Max Response Frequency More Than 1300 PPS
Max Starting Frequency More Than 1000 PPS
Insulation Class CLASS E FOR COILS
Insulation Strength 100 V AC FOR ONE SECOND
Insulation Resistance 50mΩ DC 500 V
Operating Temperature -0~55℃
Primary Applications
  • Camera systems
  • Optical instruments
  • Lens mechanisms
  • Precision medical devices
  • Automatic door locks
Product Details
SM20-21L-T Linear Stepper Motor 2 Phase 12V Rated Voltage and 18° step for Precision Control
Wiring Connection Options

The motor input features FPC connection, but can be customized to include connecting line needles, PCB, or other forms based on customer requirements.

SM20-21L-T Linear Stepper Motor 2 Phase 12V Rated Voltage and 18° step for Precision Control
